workflow_root_step_link Table (537)

Link root steps to the workflow

Fields

Name	Description	Type	Nullable
workflow_root_step_link_id	Primary key	PK	No
workflow_id	The workflow to connect to	FK workflow	Yes
workflow_step_id	A workflow step connected to the option	FK workflow_step	Yes
Rank	Step order	Int	Yes
registered	Registered when	UtcDateTime	No
registered_associate_id	Registered by whom	FK associate	No
updated	Last updated when	UtcDateTime	No
updated_associate_id	Last updated by whom	FK associate	No
updatedCount	Number of updates made to this record	UShort	No

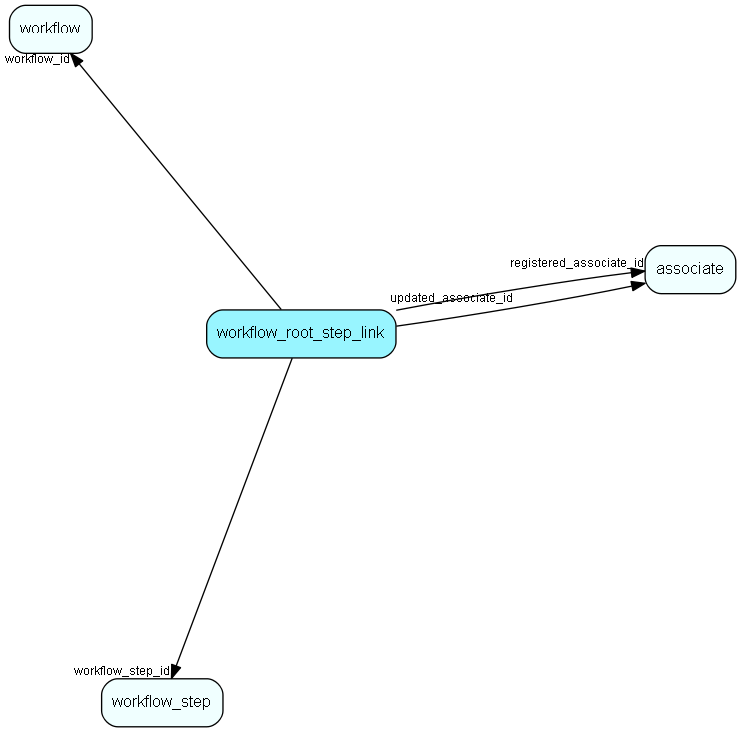

workflow_root_step_link table relationship diagram

Indexes

Fields	Types	Description

Relationships

Table	Description
associate	Employees, resources and other users - except for External persons
workflow	SuperOffice specific info about a workflow
workflow_step	A set of steps related to a workflow.

Replication Flags

None

Security Flags

Sentry controls access to items in this table using user’s Role and data rights matrix on the table’s parent.
